ESP32-S3 1.46inch Round Touch Display Development Board, 412×412 Pixel IPS LCD, Accelerometer and Gyroscope Sensor, Onboard Speaker and Microphone, ESP32 with Display, Supports W-i-F-i & B LE
5.0 (44 items)
Limited Time SaleUS$17.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217003801 | Release Date | 2026/04/19 | List Price | US$11.52 | Model Number | 217003801 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

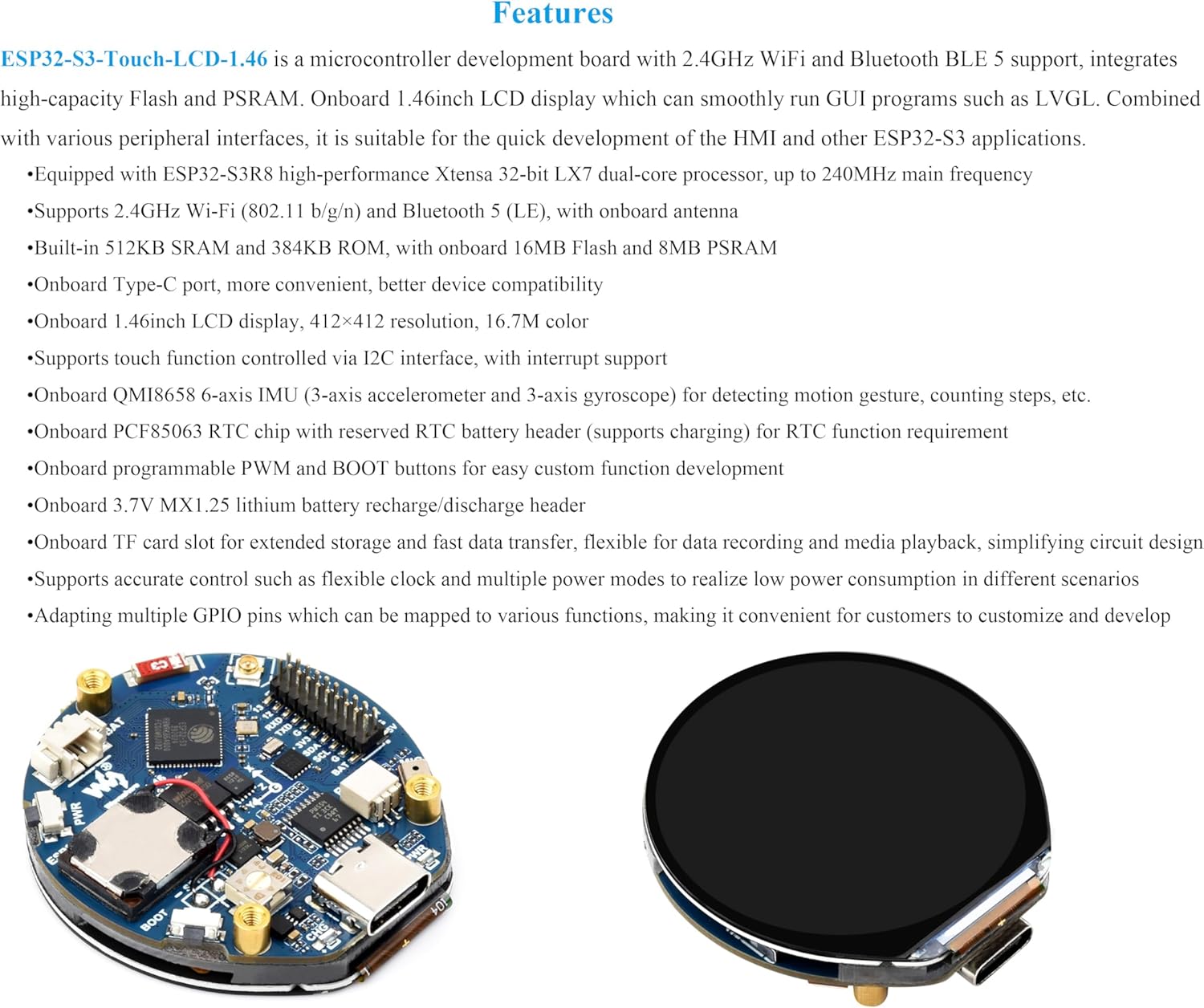

- There are two versions of this item, this version is ESP32-S3-Touch-LCD-1.46B, with touch control, without cover glass. ESP32-S3 1.46inch Round Display Development Board, 412×412 Pixel, Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Supports 2.4GHz Wi-F--i (802.11 b/g/n) and B LE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
- IPS Display Panel, 16.7M color, 412×412 resolution, with wide viewing angle. Onboard Type-C port, more convenient, better device compatibility. Onboard 1.46inch LCD display, 412×412 resolution, 16.7M color.
- Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard programmable PWM and BOOT buttons for easy custom function development. Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design.
- Supports multiple peripherals. Supports the expansion of multiple peripherals via UART, GPIO and I2C interfaces, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop.
- Comes with Online Development Resources /User Manual: bit.ly/4fFxnSp
| Brand | UeeKKoo |
|---|---|
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-Touch-LCD-1.46B |
| BuiltIn Media | ESP32-S3-Touch-LCD-1.46B x1 |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 2.4E+2 MHz |
| Total Usb Ports | 1 |
| RAM Memory Installed | 8707520 Bytes |
| Warranty Description | Technical Support is provided |
| Memory Storage Capacity | 24 MB |
